PRODUCT    Paper Cutting Machine    High speed sheeter machine CM1450

High speed sheeter machine CM1450

Servo motor
fast speed
roll to sheet cutting
  • High Speed Paper Sheeter Cutting Machine GM1450

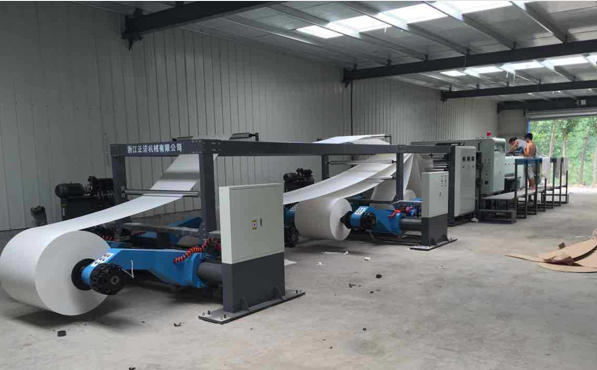

    Roll to sheet Paper Sheeter GM1450

    Servo Precision high speed Sheet cutting Machine GM1450 apply the advanced technique of Germany and England, the machine computer control system apply Servo motor and AC transducer which are both international of Top brand ,the conveyer belt apply NITTA from Japan ,The pneumatic vibrator apply FINDEVA form Switzerland, the electrical system adopts Schneider& Omron. It leads to the speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision, the controller of soft-touch computer screen is simple and convenient by operation, the anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry.


    Standard Configuration

    1高精度单刀切纸机 High-precision single knife cutting machine

    2纸张菱角调正系统 Prismatic adjustment system for paper

    3静电消除设备 Equipment of Electro static elimination

    4对剖及纸边收集系统 Middle slitting and waste collection system

    5自动计数标签插曲设备Automatic counting and label inserting equipment

    6卷筒纸运输设备(含轨道车两条) Paper transporting equipment

    7自动齐纸集纸设备 Automatic paper trimming and collecting machine

    8驱动马达系统 Driving motor system

    9电器操控系统 Electrical controlling system

    10随机附属品 Accessory by machine

    11双臂油压无轴式纸架 Double arm oil pressure shaftless paper rack

    12自动导达及张力系统Automatic directing and paper tension controller

    13自动吸尘器设备 Equipment of automatic vacuum

    14操作系统:人机界面液晶屏幕 Operation system: LCD panel by operator

    15主传动系统:AC伺服马达 Main drive system: AC servo motor

    技术参数 Main Technical Parameter

    型号

    Model

    GM1450

    型号

    Model

    GM1450

    切纸型式

    Model of cutting Paper

    上刀回切,下刀固定

    The up knife cut reciprocally and down knife is fixed

    最高切断米速

    Max cutting line speed



    350cuts/min



    纸张适用范围

    Thickness of cutting paper

    50-550g

    切断长度

    Cutting length range

    430--1450mm

    切断精度

    Cutting precision

    切断长度在1000mm以下:±0.3mm

    The cutting length 1000mm   is ±0.3mm

    Paper piling height

    1600mm

    最高切断速度

    Max cutting speed

    350cuts/min



    最大卷筒纸直径

    Max. scroll diameter

    1800mm Max

    机台总量

    Gross Weight

    11000Kg/ 13000Kg/   15000kg

    最大卷筒纸张幅

    Max. paper cutting width

    1450mm

    电源

    Power Supply

    380V/ 220V ± 10%

    50 Hz, 60Hz

    剖纸幅数

    (The format of slitting)

     2 sheets






    气压源要求

    air compressor

    0.8 Mpa
